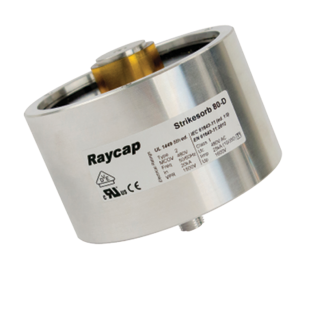

Strikesorb 80 Module
Strikesorb 80-A•Strikesorb 80-B•Strikesorb 80-C
Strikesorb 80-D•Strikesorb 80-E•Strikesorb 80-F
Make : Raycap
Strikesorb 30 Module
Strikesorb 30-A•Strikesorb 30-B
Strikesorb 30-C • Strikesorb 30-D
Strikesorb 30-A-M•Strikesorb 30-B-M• Strikesorb 30-C-M•Strikesorb 30-D-M
Make : Raycap
Strikesorb 40 Module
Strikesorb 30-A•Strikesorb 30-B•Strikesorb 30-C • Strikesorb 30-D
Strikesorb 30-A-M•Strikesorb 30-B-M• Strikesorb 30-C-M•Strikesorb 30-D-M
Make : Raycap

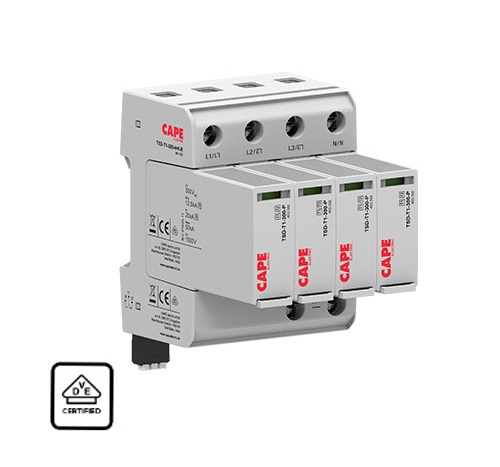

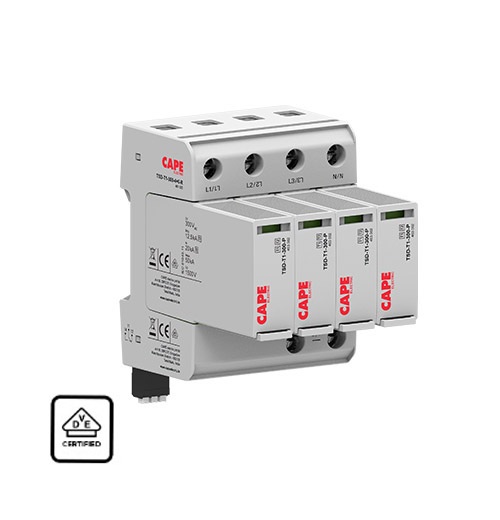

TSD T1
Special features:
- Available in a wide variety of operating voltages, 75V to 750V
- High impulse current capability using single MOV– 480V and 750V versions comes with reduced impulse current
- Sensitive state-of-the-art thermal disconnector
- Back-up fuse up to 315A gG, 750V version comes with 250A gG
- Short circuit current rating up to 50kA
- Vibration and shock withstand capability
- VDE-IEC Class I & II / EN Type 1+2 certified and UL Type 1CA certified
- All modules, also N-PE, with operating state green-red
- Optional remote contact (RC) signaling
Make : Cape
TSD T1H
Special features:
- Leakage free hybrid topology
- Energy coordinated with other TSD families without additional cable length
- State-of-the-art thermal disconnector
- Backup fuse up to 315A gG
- Short circuit current rating up to 50kA
- Vibration and shock withstand capability
- All modules, also N-PE, with operating state green-red
- Optional remote contact signaling
- VDE-IEC Class I & II / EN Type 1+2 and UL Type 4CA certified
Make : Cape

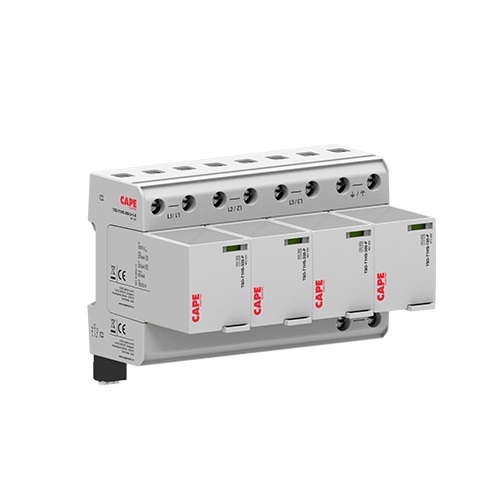

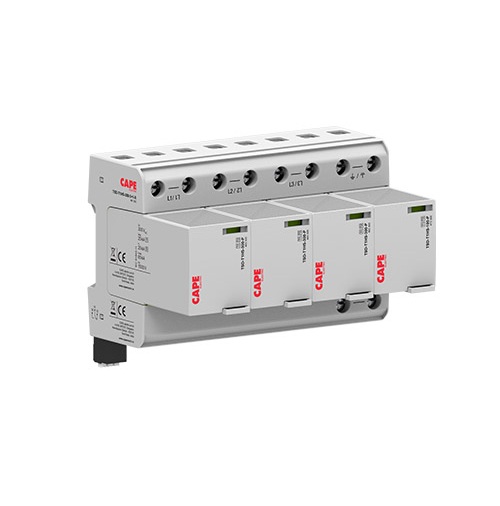

TSD T1HS
Special features:
- Leakage free hybrid topology
- High discharge capacity due to unique design impulse discharge current of 25kA
- Energy coordinated with other TSD families without additional cable length
- State-of-the-art thermal disconnector
- Backup fuse up to 315A gG
- Short circuit current rating up to 50kA
- Vibration and shock withstand capability
- All modules, also N-PE, with operating state green-red
- Optional remote contact (RC) signaling
- VDE-IEC Class I & II / EN Type 1+2 and UL Type 4CA certified
Make : Cape
TSD T1S
Special features:
- Leakage current free solution, Class I, Iimp = 35kA & 50kA
- Low voltage protection level, Up < 2.5kV
- Can be installed in IT systems (Only SPD with Uc 440V)
- No external backup fuse required up to 500A
- Vibration and shock withstand capability
- Sensitive and reliable state-of-the-art disconnector
- Short circuit current rating up to 100kA
- Compact power package, 35kA & 50kA Iimp in 2 TE
Make : Cape

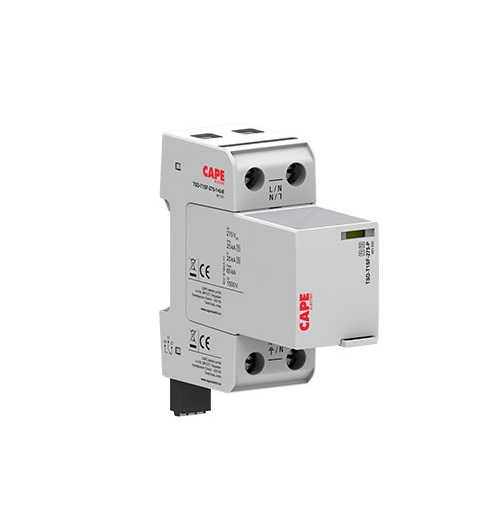

TSD T1SF
Special features:
- Integrated backup fuse
- Leakage current free product for installation in the pre-metering area
- Shorter connecting cables – low voltage protection level
- Reduced installation space requirements, costs, wiring time and complexity
- Sensitive and reliable state-of-the-art disconnector
- Visual and remote signalization of the device status
- Short circuit current rating up to 100kA*
Make : Cape

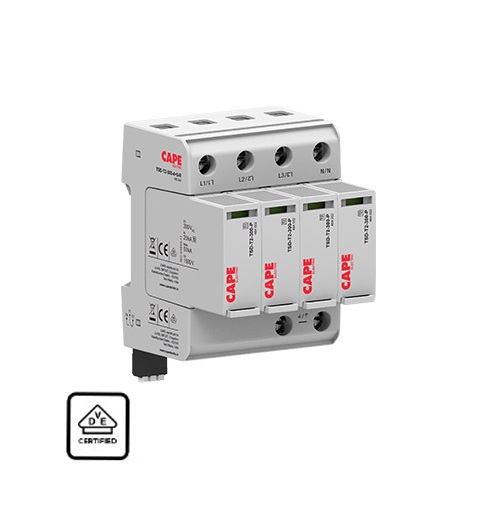

TSD T2
Special features:
- Available in a wide variety of operating voltages 75V to 750V
- High Impulse Current capability using a single MOV
- Sensitive state-of-the-art thermal disconnector
- Backup fuse up to 315AgG
- Short-circuit current rating up to 50kA
- Vibration and shock withstand capability
- VDE-IEC Class II / Type 2 certified and UL Type 1CA certified
- All modules including N-PE with operating state green-red
- Optional remote contact (RC) signaling
Make : Cape

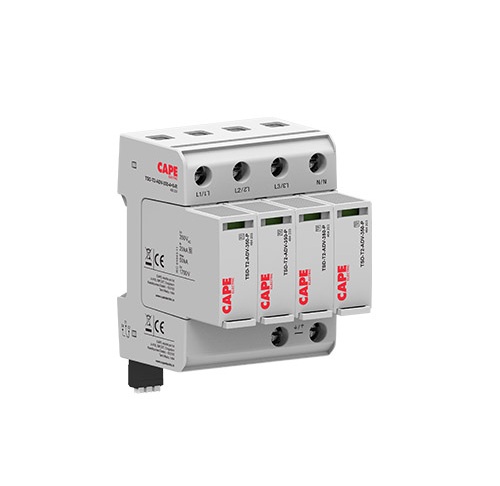

TSD T2 Adv
Special features:
- Early warning system with clear green-yellow-red indicators
- Available in a wide variety of operating voltages from 75V to 480V
- High surge maximum discharge current capability of 50kA
- State-of-the-art thermal disconnector
- Backup fuse up to 315AgG
- Vibration and shock withstand capability
- Optional remote contact (RC) signaling
- VDE-IEC Class II / EN Type 2 certified and UL Type 1CA certified
Make : Cape

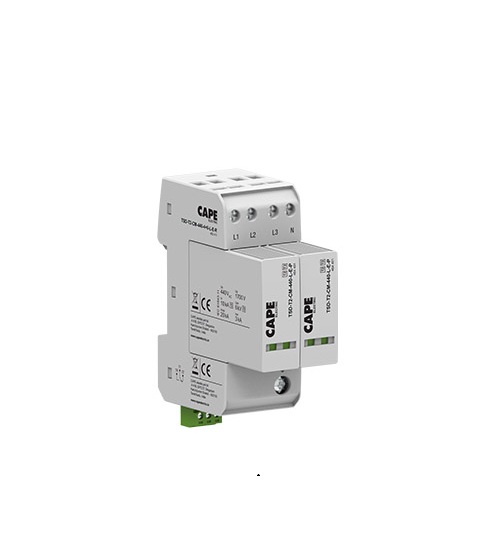

TSD T2-CM-L-E
Special features:
- Pluggable design with 9mm size per pole
- Type 2 and high rated Type 3 SPD
- Available in operating voltages 275V and 440V
- Short-circuit current rating up to 25kA
- Discharge capacity Imax up to 10kA (L-N) and 20kA (N-PE)
- All modules including N-PE with operating state green-red
- Optional remote contact (RC) signaling
Make : Cape

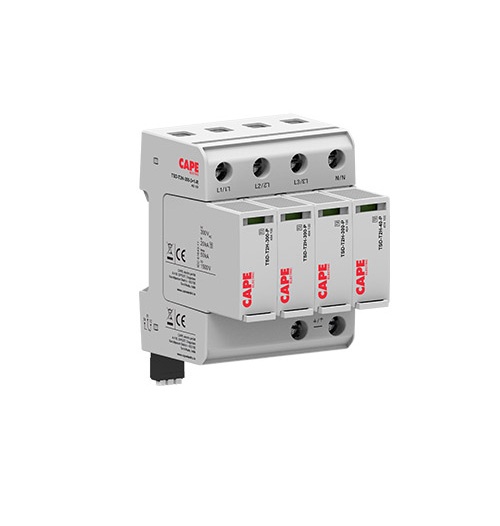

TSD T2H
Special features:
- High maximum discharge current capacity (Imax) of 50kA
- State-of-the-art thermal disconnector
- Leakage current-free technology
- Backup fuse up to 315AgG
- Short-circuit current rating up to 50kA
- Vibration and shock withstand capability
- VDE-IEC Class II / EN Type 2 certified and UL Type 1CA certified
- All modules including N-PE, with operating state green-red
- Optional remote contact signaling (RC)
Make : Cape

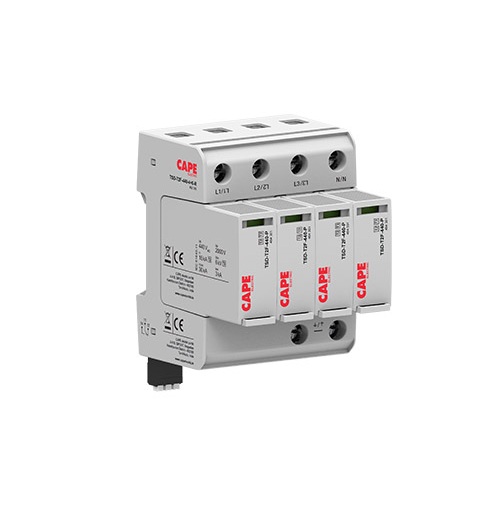

TSD T2F
Special features:
- Integrated back-up fuse – no external fuse needed
- Reduces design complexity and optimizes installation
- Better overall voltage protection levels due to less wiring
- High discharge capacity – Imax up to 40 kA
- Short circuit current rating up to 100 kA
- Type 2 SPD, compliant to IEC 61643-11
- Shock and vibration tested
Make : Cape
